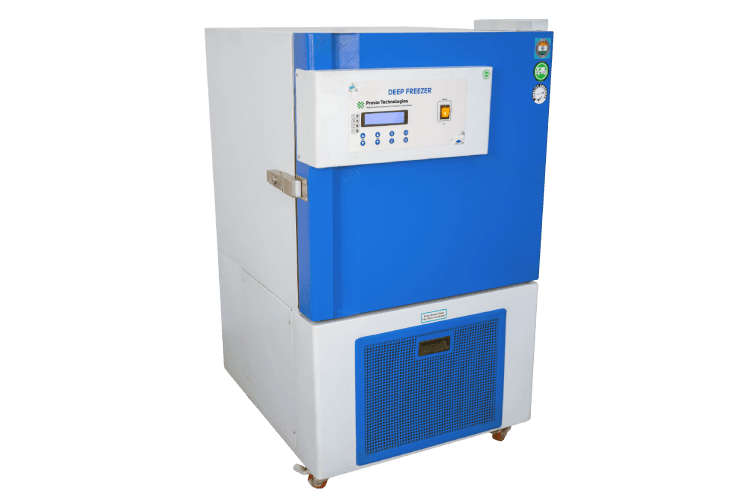

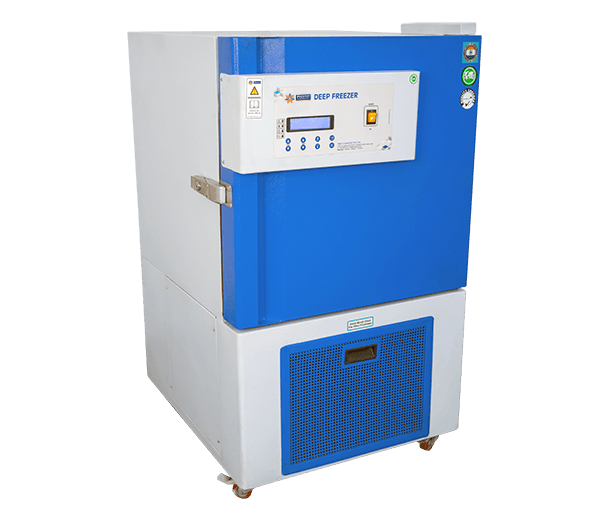

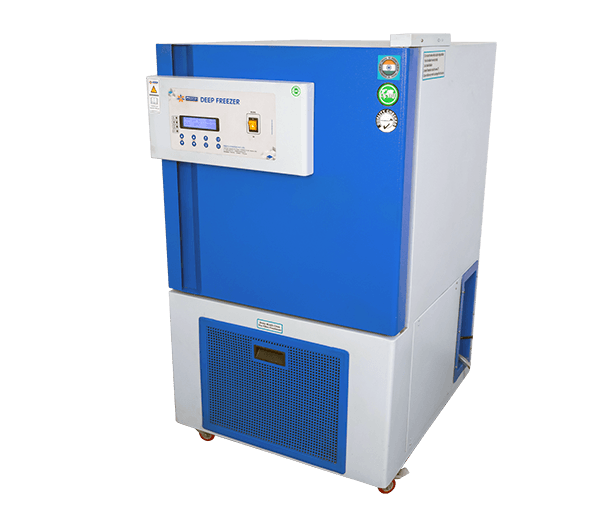

The Ultra Low-Temperature Deep Freezer has an air-cooled compressor and CFC-free refrigerators, ensuring effcient cooling and consistent airflow within the cabinet. This freezer maintains a dust-free environment by featuring high-capacity air-cooled condensers equipped with aerodynamic fans and washable condenser filters.
Moreover, the Ultra Low-Temperature Deep Freezer offers valuable insights into the mechanical behavior of polymers and rubber at low temperatures. The initial procedure involves establishing an effective technique for low-temperature testing, which encompasses various effects such as glass transition, solubility changes, first-order transitions like crystallization, and impacts associated with plasticizers.
Complying strictly with ASTM standards, this deep freezer guarantees reliable and accurate testing procedures.
Chest-type freezers can be equipped with temperatures ranging from 10 oC to -60 oC upon request.
Precise temperature control is ensured.
High-quality glass wool insulation minimizes cooling loss.
Energy consumption is kept to a minimum.
A digital electronic temperature controller cum indicator provides easy readability.
The durable stainless steel interiors help maintain temperature and facilitate easy cleaning.
The outer structure is constructed of galvanized sheets and nished with epoxy paint.
Key locks are installed for security.
| Specification | Details |
|---|---|
|
Display |
LED (Digital) |
|
Least Count/Resolution |
0.1oC |
|
Temperature Range |
-10 oC to -60 oC (Customizable upon request) |
|
Number of Sample Racks |
2 |
|
Temperature Control |
PID controller with Pt-100 sensor |
|
Power |
220 –240V/50Hz |
|
Testing Models |
Vertical synchronous, Vertical asynchronous, Swivel synchronous, Swivel asynchronous |
No. of Sample racks: 2
Lock able Handle: Yes
Material Mild Steel (Outer Body)
Stainless Steel (Inner Body)
Finish: Powder-coated Havel Gray & Blue combination nish and bright chrome/zinc plating for a corrosion-
resistant nish
Door Opening: Front Side
Castor Wheel: Yes
Dimensions
Internal : 455 x 455 x 455 mm
External : 670 x 730 x 1250 mm
