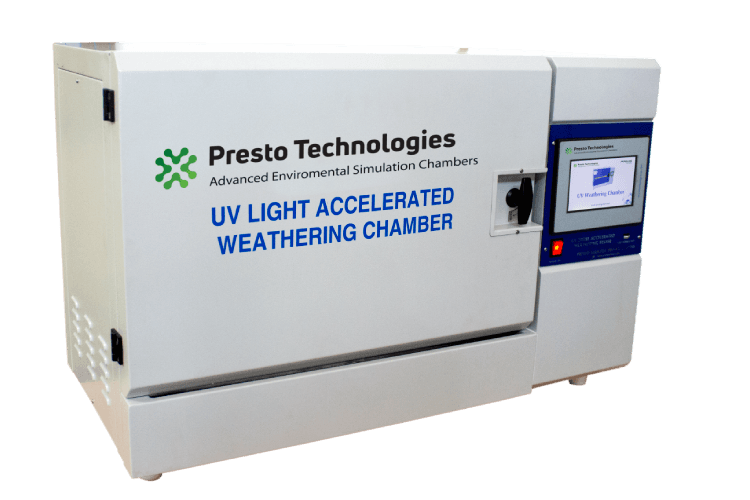

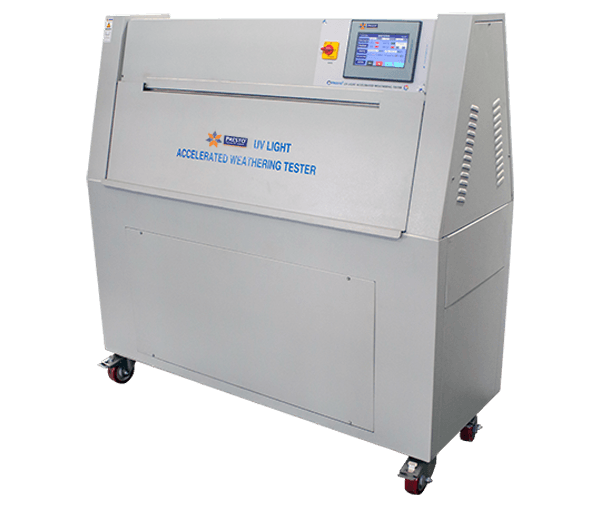

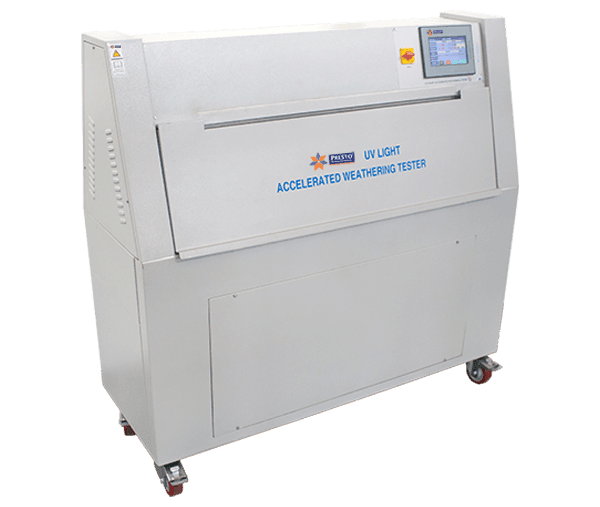

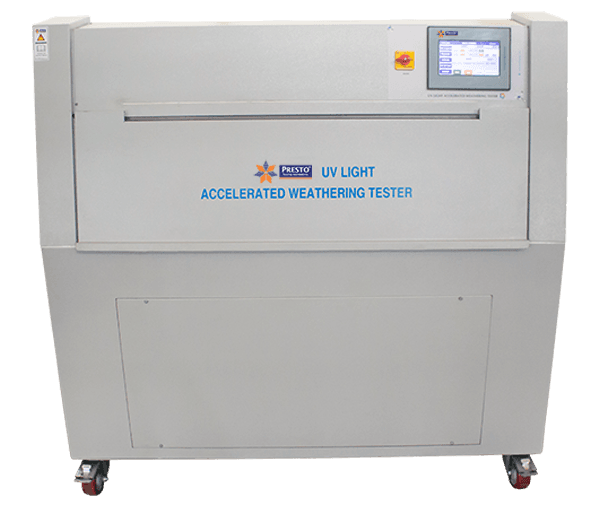

UV Weathering Test Chamber

It is essential to measure the life cycle of a polymer product when exposed to the atmosphere due to versatile environmental conditions.

This is why, testing the durability and longevity of polymers exposed to the environment is necessary for assuring customer satisfaction and procient manufacturing of the product.

UV Light Accelerated Weathering Tester is a machine designed to deliver exactly what is required for the manufacturers of the polymer industry.

The UV Test Machine is responsible for simulating real-life environments and atmospheres that may or may not affect the durability and longevity of these polymers.

The UV Test Machine is a very effective testing chamber for understanding the durability and longevity of polymers by simulating real-life environmental conditions and measuring the effects of the constantly changing atmosphere around them.

Technical Specifications

  • UVA or UVB lamps play a crucial role in ensuring the consistency of testing outcomes.

  • Utilizing original UV lamps, our machine guarantees the authenticity of testing light sources, surpassing

    alternative options like Xenon Lamps. UV lamps offer superior accuracy and stability.

  • Our instrument delivers highly reproducible testing results with minimal effort, thus reducing operational costs.

  • Crafted with meticulous attention to detail, our machine undergoes rigorous quality control testing to ensure

    peak performance.

  • Tailored to meet diverse application needs across various industries, our range of uorescent UV lamps offers

    versatility and reliability.

  • The PSPL 856 model features automatic calibration of irradiance, facilitated by spray and condensation

    functions.

  • Achieve precise irradiance control effortlessly through our closed-loop system, ensuring optimal testing

    conditions.

  • Benefit from built-in alarm and protection mechanisms, including safeguards against creep-age, water

    damage, overloading, and excessive temperatures.

SpecificationDetails

Temperature Stability

±2°C

Inner Cabinet Material

Durable SUS 304 stainless steel

Outer Cabinet Material

Powder-coated SUS 304 material for enhanced durability

Specimen Capacity

Up to 48 pieces of standard-size specimens measuring 75×150mm or 15 pieces of size 100×300mm

Power Supply Compatibility

±10%, 50/60Hz, up to 15A maximum electric current

Water Supply Adjustment Range

0-4LPM

Compliance with Standards

ISO 4892-3:2013, ASTM D 4587-11, JIS D 0205 –1987, J2020 –200302

  • Original UVA or UVB lamps ensure consistency in testing outcomes, surpassing alternatives like Xenon Lamps for superior accuracy and stability.
  • Delivers highly reproducible results with minimal effort, reducing operational costs and ensuring efciency in testing processes.
  • Crafted with meticulous attention to detail, undergoing rigorous quality control testing to guarantee peak performance and reliability.
  • Tailored to meet diverse application needs across various industries, offering versatility and reliability in testing requirements.
  • PSPL 856 model features automatic calibration of irradiance, facilitated by spray and condensation functions, ensuring consistent and precise testing conditions.
  • Achieve precise irradiance control effortlessly through a closed-loop system, maintaining optimal testing conditions for accurate results.
  • Benet from built-in alarms and protection mechanisms, including safeguards against creepage, water damage, overloading, and excessive temperatures, ensuring the safety and longevity of the equipment.

FAQs

The UV test chamber also known as the UV weathering accelerated chamber is designed to determine the ability of materials used in the production of various items to withstand the exposure to environment. The polymer industry is the majorly affected industry as the polymer materials might face changes in their properties when exposed to sunlight in the environment due to the harmful & powerful rays from the scorching sun. The instrument is constructed with extreme precision to evaluate these changes that may or may not occur when the product comes in direct contact with certain lighting or environmental conditions.

The UV weathering test chamber works on the phenomena of simulation by simulating or repeating the environmental conditions inside the testing chamber of the instrument. The instrument simulates the lighting conditions due to the incorporation of the UVA & UVB lamps that ensure the inner chamber replicates the sunlight on the material. The change in material’s properties due to the conditioning inside the chamber is analyzed critically by the operator and the uncertainties that occur (if any) are determined and eradicated for future usage in the production process. The instrument is equipped with a lot of lighting lamps like xenon, UVA, UVB, etc. that ensure accuracy-driven results.

The price of the UV accelerated weathering test chamber differs from variant to variant as the instrument is offered in a lot of different variants. These variants of the instrument vary in size & specification to satisfy compliance with variable standards. The instrument also allows the end-consumer to get it customized as per the requirements of the specimen that is going to be tested. However, the price of the instrument varies from 5 lacs to 50 lacs which differs because of the specification & size changes for every customer.

To get your hands on the verified UV accelerated weathering chamber, you must make sure that the instrument is equipped with all the necessary equipment required for testing as well as the instrument complies with all the guidelines of the standard. The best way to get your hands on the verified instrument is to evaluate each & every feature by assessing the instrument beforehand and also making sure that the specifications of the instrument do not differ. Keeping these points in your head will help you fetch the verified UV accelerated weather chamber.

To buy the most genuine UV test chamber, make sure to always look out for verified suppliers and manufacturers of the lab testing instrument as it reduces the scope of getting faulty instruments. These suppliers & manufacturers will provide an assurance of standard compliance and you will have to analyse whether the instrument’s specifications are in compliance or not.

The features of the instrument must be checked before getting your hands on the device as they ensure seamless testing measures and ensure accuracy with quick testing measures. With all this knowledge you can easily find a genuine UV test chamber.
