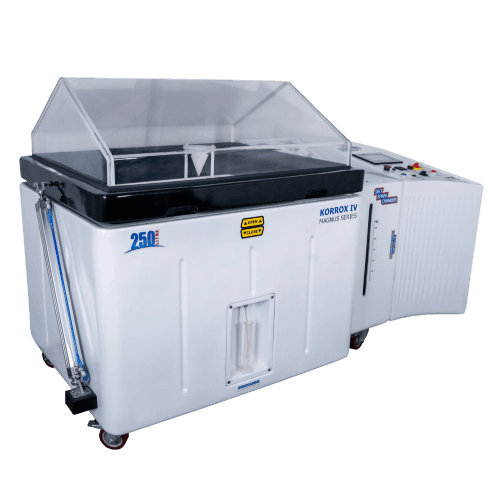

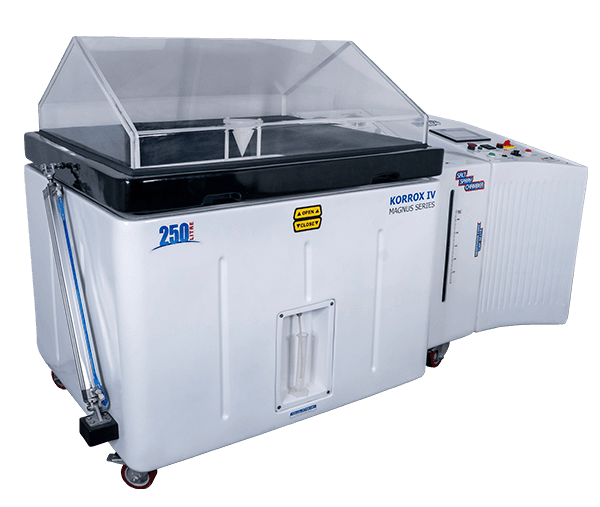

A Salt Spray Tester, also known as a Salt Fog Test Chamber, is a laboratory instrument designed to evaluate the corrosion resistance of metals, coatings, and surface treatments. It provides a stable and controlled saline environment for accelerated corrosion evaluation in accordance with standardized test methods. Salt spray chamber, compliance with ASTM B117 and JIS Z 2371 standards, ensures accurate, repeatable test results for quality control and research applications. Salt spray test machines are widely used in the automotive, aerospace, metal finishing, and coatings industries in quality control and corrosion testing. This tester enables manufacturers to verify product durability and improve corrosion protection in demanding environments.
Presto Enviro is a leading Salt Spray Chamber manufacturer in India. For the best price, contact us for a quote or call now!

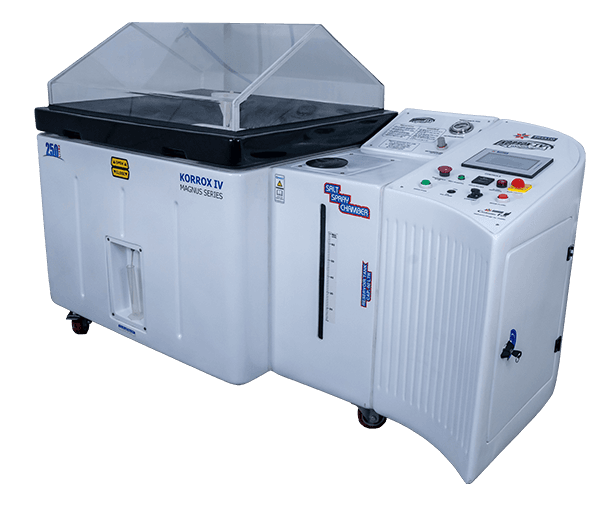

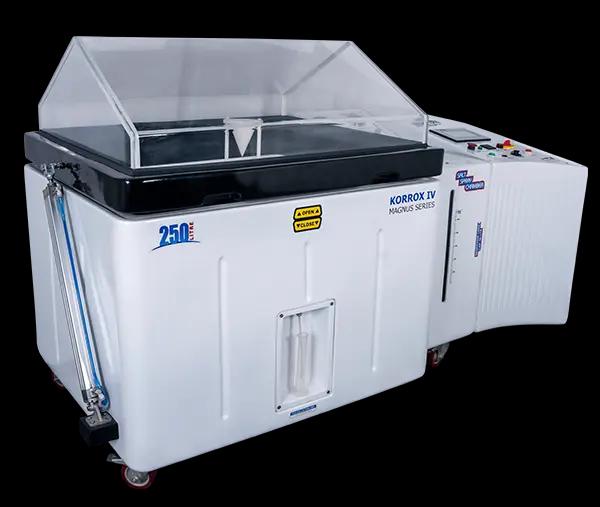

The Salt Spray Chamber is a widely used testing machine used for determining the corrosion resistance of the tested sample in a salt-laden environment.
However, it is very important to understand and evaluate the effects of a corrosive environment on the sample, and to create such a corrosive environment around the sample, salt spray chambers are the finest lab testing instruments.
They help in assessing the capabilities of the sample to withstand corrosion & rusting when exposed to extreme climatic conditions.
The Salt Spray Chamber replicates a variable mix of environmental conditions and is adjustable from an ambient setting to +40 degrees Celsius. This testing machine offers an HMI-based touchscreen that enables temperature-controlling through PID with extreme ease and minimal hassle.
The machinery is equipped with state-of-the-art technology in all 4 major parts of the machine i.e. the inner chamber, the reservoir tank, the air pressure tank, and the electrical chamber. The manufacturing of the machinery with a triple chamber including glass wool and FRP material makes the machine the most advanced lab testing instrument.
Ensure precise temperature control with a corrosion-resistant PT-100 sensor.
Effortlessly navigate program profiles and adjust test parameters via the intuitive touchscreen display.
Enjoy user-friendly access and streamlined data management capabilities.
Experience superior insulation with a triple-walled body reinforced with fiber, minimizing heat loss.
Easily place samples within the test chamber using clearly defined methods.
For the 250 Ltr. model, benefit from a pneumatically operated canopy for added convenience.
Ensure clarity post-test with an air purge system designed to settle fog before opening the chamber.
A reservoir tank with a sponge filter is installed inside for the salt solution.
Retrieve test data effortlessly with the USB option.
| Specification | Details |
|---|---|
|
HMI Touchscreen Display |
Effortlessly navigate operations and monitor performance |
|
Chamber Temperature Range |
Ambient to 40°C |
|
Test Chamber Temperature Stability |
35°C ± 2°C |
|
Power Requirement |
220V, single phase, 50 Hz, 15 A |
|
pH Adjustment Range | 6.5 to 7.2 pH |
|
Elapsed Time Tracking |
Inbuilt 6-digit timer (Hour meter) |
|
Test Air Pressure Range |
0.7Kg/cm2 to 1.2Kg/cm2 |
Widely used for assessing the sample's resistance to corrosion and rusting in salt-laden environments, simulating extreme climatic conditions.
Replicates a variable mix of environmental conditions, adjustable from ambient to +40 degrees Celsius.
Precise temperature control facilitated by a corrosion-resistant PT-100 sensor and HMI-based touchscreen with
PID control.
Equipped with advanced technology in all major parts, including the inner chamber, reservoir tank, air
pressure tank, and electrical chamber.
Triple-chamber design, incorporating glass wool and FRP material, ensuring superior insulation and durability.
Intuitive touchscreen display for easy navigation of program proles and adjustment of test parameters, with
streamlined data management capabilities.
Clearly defined methods for easy placement of samples within the test chamber.
Pneumatically operated canopy for added convenience in the 250 Ltr. model, and an air purge system to
settle fog before opening the chamber for clarity post-test.
Includes a reservoir tank with a sponge filter for the salt solution, ensuring consistent and reliable testing
conditions.
Effortless retrieval of test data with the USB option, facilitating convenient analysis and documentation.
Get Free online demo and test reports
Sample testing at Rs 4999 /- Zero Cost
Get help from our testing experts
Get solutions and answer to all your questions
NABL approved lab
Elevate your quality assurance process to new heights
-
The Thermal Cycling Chamber is an advanced environmental simulation system widely used to assess the durability and performance lifespan of a specimen. This chamber helps in evaluating the effect of fluctuating temperatures on a product’s quality and structural integrity after completion of the testing cycle.
