Electric vehicles can be used in the cold winter and the wet tropics. Combined testing of EV parts in both heat and moisture gives an indication of the overall effect that real-world weather will have on long-term operation.
Electric vehicles are home to complex electronics, high-voltage batteries and sensitive power systems. Putting an EV on the street isn't the same as putting a car on the street! There's always moisture in the air. A battery pack can get hot when outside air is damp, and on a cold, foggy morning, a control unit can cool quickly which can cause water to form inside the casing.
Engineers test components on temperature changes alone which misses a major part of the real picture. Humidity influences the transfer of heat. Water can get into small holes in plastic enclosures and compromise the enclosure’s seals and accelerate corrosion on open circuit paths. Why it's important to test electric vehicle parts with temperature and humidity, how it's done in a test lab, and what to look for in the electronic test equipment.
Temperature and humidity testing evaluates automotive parts inside a controlled chamber to expose them to specific heat, cold, and moisture levels simultaneously. It reproduces environmental stress in a fast-track lab environment to uncover design flaws early.
Say, for example, you are in a car in a dark tunnel on a humid summer morning. Outside the tunnel, the air is warm and heavy with moisture. The air and inside the walls is cool. As your car transitions between these zones, water droplets instantly form on the cold windshield and metal body panels. A similar reaction happens inside an electric vehicle's electronic control unit.
In a normal test, the temperature inside the chamber could be around 85° Celsius and the relative humidity could be increased to 85 percent. As the temperature increases, moisture begins to work its way through the outer protective coatings. When the chamber cools rapidly, trapped moisture solidifies and falls directly onto the very small electrical traces. In this dynamic shift, engineers are able to determine if there is a short circuit or if the insulation breaks down; if the materials expand and deform from stress; or if the circuits short out. It's not simply a matter of static exposure; it's a matter of simulating the fast weather modifications that a vehicle undergoes throughout the years of use.
Compared with gas-powered vehicles, the danger from failure of insulation and corrosion is much greater in electric vehicles, which run on much higher voltages. Combined environmental tests help prevent unexpected electrical shorts, material breakdown and costly field recalls.
Water and electricity haven't been friends and high-voltage EV systems don't make the situation any simpler. The standard battery pack operates at a few hundred volts. If humidity creeps past a rubber gasket and settles on a live busbar, electrical tracking can occur. This creates a tiny path for current to leak, which gradually damages the surrounding insulation until a short circuit happens.
Material behavior is another major reason this testing matters so much. Modern EVs use lightweight composite materials, specialized plastics and rubber seals in an effort to keep weight down and water out. These materials, built on heat and humidity, can lead to organic polymers absorbing water and swelling. When both happen together, seals lose their tension, connectors loosen up, and protective housings can warp or crack. Finding these weaknesses during design phases saves manufacturers from catastrophic field failures later on.
Thermal management systems in electric cars also depend heavily on precise sensor feedback. Coolant lines, heat pumps, and battery chillers rely on sensors that are constantly exposed to ambient air. If moisture enters a sensor housing during warm operation and freezes when the temperature drops, the sensor sends wrong readings. That can cause the entire cooling system to misbehave, leading to battery overheating or reduced driving range.
The testing procedure follows a structured sequence of preparation, baseline checks, environmental cycling, and real time monitoring. It applies stress profiles to the components to check for structural and electrical endurance.
Environmental testing protocols require careful planning and procedures for them to be successful. Putting a component in a box and cranking up the temperature and hoping to get useful data is not enough. A lot of control is required in the entire process from mounting to post test analysis. Once mounted and after the test, all steps have to be very carefully controlled.
Before any environmental exposure begins, the test sample undergoes thorough physical and electrical checks. Engineers record baseline measurements so they have a clean point of comparison after the test ends.
Any oil or dust on the surface is removed by degreasing the part being degreased, which prevents moisture absorption. Baseline tests are performed; technicians check all electrical pin connections and housing seals are inspected under magnification. Once verified, the sample is mounted on specific fixtures inside the test chamber. Placement of the fixture is very important because air must be able to flow freely around all sides of the component with no blocked zones or artificial hot spots.
Engineers program the test chamber controller with specific cycles that mirror automotive standards like ISO or LV124. These profiles define target temperatures, humidity levels, ramp rates, and dwell times.
A typical cycle might start at a neutral 23 degrees Celsius and 50 percent relative humidity. The chamber then ramps up to high heat, say 80 degrees, while simultaneously raising relative humidity to 90 percent. The system holds these conditions for several hours during a dwell period, allowing heat and moisture to penetrate deep into the test sample. After the dwell period, the chamber ramps down to sub zero temperatures, forcing any absorbed moisture to freeze and expand within microscopic voids.
In the environmental cycle, the component is typically connected to the power supply and running. Intermittent glitches that only occur when something is being stressed are picked up by continuous data logging.
The special wiring harnesses extend from the component in the chamber to sealed access ports to the outside measuring equipment. Signals, currents, resistance changes and bus traffic are tracked as they occur. There are times when a circuit board works perfectly at room temperature but breaks for a while when the air is 60 degrees and 95 percent relative humidity and then works again when it's cooler. But had there not been real time monitoring throughout the test cycle, that minute failure would not have been known until a customer got it on the road.
When the full cycle finishes, the component cools back down to ambient room conditions for final visual and functional checks. Engineers tear down the housing to inspect internal surfaces for hidden damage.
Technicians look for signs of surface oxidation, corrosion on electrical contacts, material discoloration and gasket deformation. Microcracks in solder joints can be found under microscopic inspection due to repeated expansion and contraction. The insulation resistance testing was repeated and confirmed that the internal electrical paths had remained in a dry and isolated state during the aggressive testing profile.
Presto Enviro designs specialized test chambers that deliver exact climate control for demanding automotive application standards. The chambers offer stability and ramp rates to test heavy EV batteries, power electronics and wiring systems.

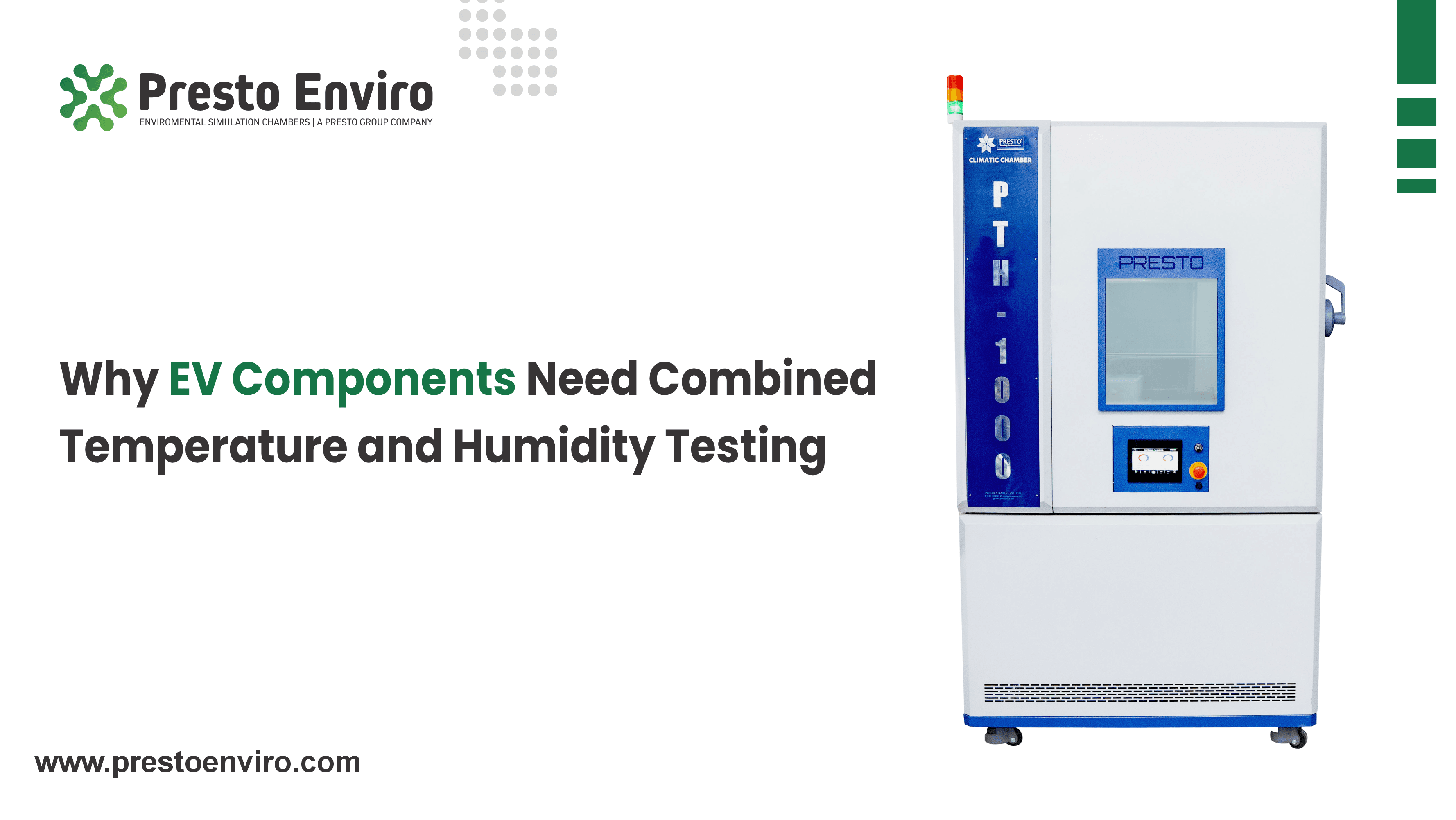

For tests of complex EV parts, temperature and humidity control equipment must be highly stable and provide fast, reliable responses to changes in temperature and humidity. The Presto Enviro Temperature and Humidity Test Chamber for EV components features high-accuracy sensors and powerful air circulation. This ensures that climate conditions stay completely uniform across the entire chamber interior, even when testing bulky battery modules or large wiring harnesses.
Presto Enviro temperature and humidity test chambers are equipped with programmable logic controllers that give engineers an easy way to set up complex multi-step profile sequences. Fast ramp rates for heat and cool enable accurate simulation of thermal shock and condensation. Heavy duty stainless steel interior resists corrosion from prolonged exposure to high humidity, and sealed access ports allow for clean wiring integration to live components for monitoring while in active test cycles.
Electric vehicles operate under demanding conditions where environmental reliability directly impacts passenger safety and vehicle longevity. Simple single-factor testing leaves dangerous blind spots in design validation. By exposing power electronics, battery systems, and delicate sensors to combined thermal and moisture stress, automotive engineers can identify and fix weak points early in the development cycle.
Repeatable, reliable test results depend on high quality testing hardware. The Presto Enviro delivers the accuracy, durability and advanced control you need to satisfy demanding automotive industry requirements. Presto Enviro Temperature and Humidity Test Chamber manufacturer, a leading manufacturer of environmental testing solutions, makes reliable equipment that helps engineers to design safer, more durable electric vehicles for worldwide markets.
