Model :PA300-40h-5K

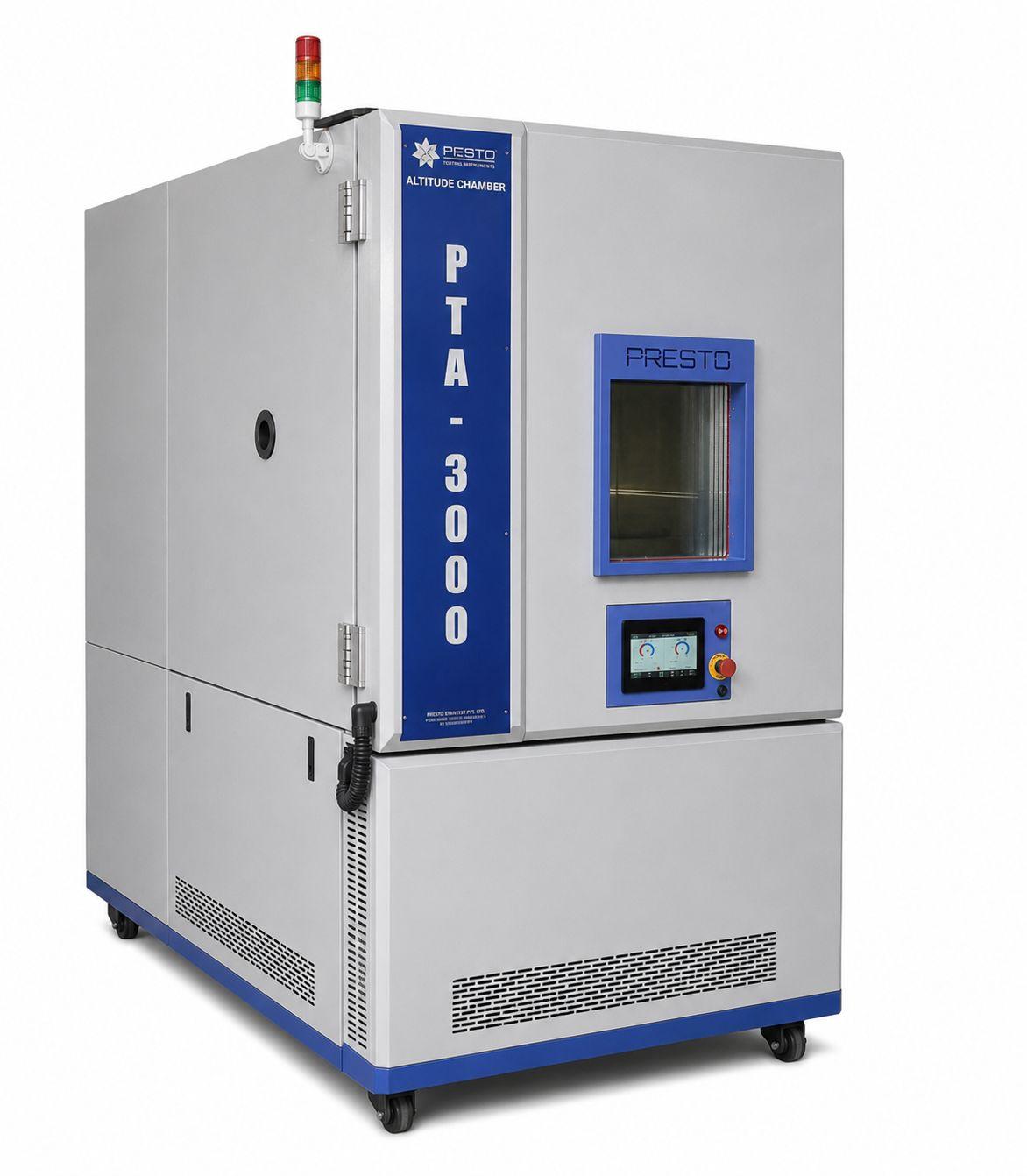

What is an Altitude Test Chamber?

The Altitude Test Chamber, also referred to as the Low Pressure Test Chamber or Vacuum Environmental Chamber, is a testing system that helps recreate the atmospheric conditions pertaining to higher altitudes by decreasing the air pressure in the chamber. Moreover, it can control temperature and humidity accurately to simulate the actual environmental conditions under which the aviation and aerospace operations occur at the high altitudes while different processes like flying, and transporting can be carried out.

Such types of chambers are used by manufacturers to check whether products are capable of working properly in such low-pressure conditions since cooling effectiveness, insulation, electrical operations, and material properties can change dramatically.

Technical Specifications

Technical Specification

Parameters
Model	PA300-40h-5K	PA600-40h-5K	PA1000-40h-5K
Volume	300l	600l	1000l
Condenser	Water cooled	Water cooled	Water cooled
Ramp rate	5°c/min average	5°c/min average	5°c/min average
Temperature	-40°c to 180°c	-40°c to 180°c	-40°c to 180°c
Temperature sensor	PT 100 class A	PT 100 class A	PT 100 class A
Temperature accuracy	±0.1 to ±1.2°c until 150°c temperature	±0.1 to ±1.2°c until 150°c temperature	±0.1 to ±1.2°c until 150°c temperature
Temperature uniformity	±1.5°c at extreme temperatures	±1.5°c at extreme temperatures	±1.5°c at extreme temperatures
Heater	SS 316 sheathed heaters	SS 316 sheathed heaters	SS 316 sheathed heaters
Test space dimension	650×600×800 (wxdxh) in mm	800×850×900 (wxdxh) in mm	1000x1000x1000 (wxdxh) in mm
Tray	40kg	60kg	80kg
Floor load	120kg UDL	120kg UDL	120kg UDL
Humidity range	10% to 98% within temperature range from 10°c to 95°c	10% to 98% within temperature range from 10°c to 95°c	10% to 98% within temperature range from 10°c to 95°c
Humidity fluctuation	±3%rh	±3%rh	±3%rh
Humidity sensor	Capacitive	Capacitive	Capacitive
Humidity type	Boiler tank steam injection	Boiler tank steam injection	Boiler tank steam injection
Humidity heater	Inconel heaters	Inconel heaters	Inconel heaters
Refrigeration system	Mechanical refrigeration	Mechanical refrigeration	Mechanical refrigeration
Refrigerant	R449A & R23	R449A & R23	R449A & R23
Pressure range	Atmospheric pressure to 1 kPa (10 mbar) absolute	Atmospheric pressure to 1 kPa (10 mbar) absolute	Atmospheric pressure to 1 kPa (10 mbar) absolute
Pressure accuracy	±0.5–1 kPa	±0.5–1 kPa	±0.5–1 kPa
Vacuum pump	Oil-sealed Rotary / Dry Screw Vacuum Pump	Oil-sealed Rotary / Dry Screw Vacuum Pump	Oil-sealed Rotary / Dry Screw Vacuum Pump
Noise level	<70db	<70db	<70db
Viewing window	400x500 in mm	400x500 in mm	400x500 in mm
Port hole size	115mm flange type	115mm flange type	115mm flange type
Wheels	Yes	Yes	Yes
Breather	Yes	Yes	Yes
Safety protection	Yes	Yes	Yes
Vacuum level	Atmosphere to 10mbar	Atmosphere to 10mbar	Atmosphere to 10mbar
Standard compliance	•Mil-Std 202G (conditions 105C, A/B/C/F) •Mil-Std 810G (condition 500.5) •IEC 60068-2-39 •IEC 60068-2-40	•Mil-Std 202G (conditions 105C, A/B/C/F) •Mil-Std 810G (condition 500.5) •IEC 60068-2-39 •IEC 60068-2-40	•Mil-Std 202G (conditions 105C, A/B/C/F) •Mil-Std 810G (condition 500.5) •IEC 60068-2-39 •IEC 60068-2-40

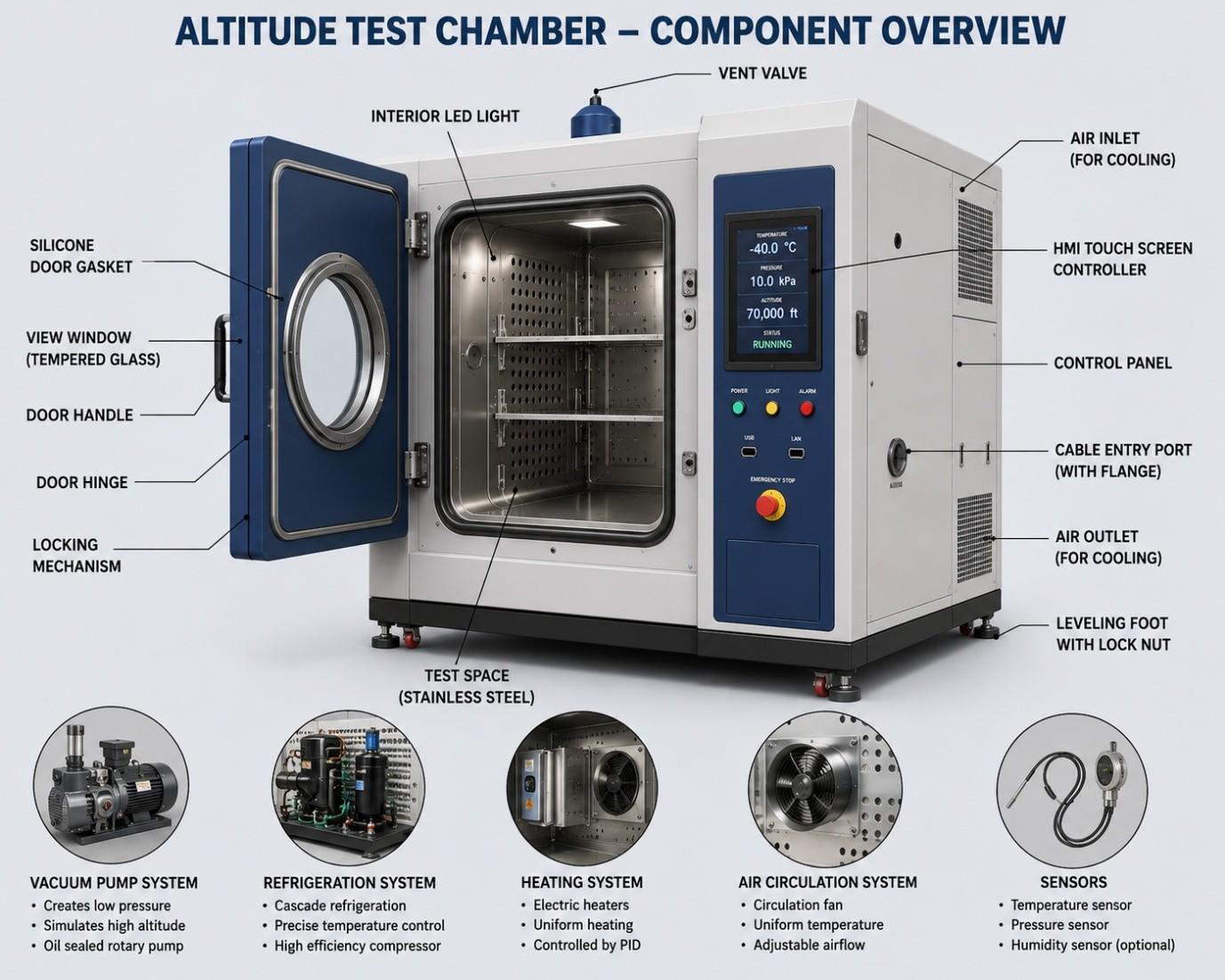

Key Feature

Advanced Airﬂow Management

Rear-mounted or top mounted high-temperature circulation fan motor
Optimized airﬂow distribution for superior uniformity
Reduced thermal stratification inside workspace
Air velocity range from 1–3 m/s

High Performance Refrigeration System

Hermetically sealed compressor technology
Energy-efficient refrigeration design
Eco-friendly refrigerants available
Fast pull-down and recovery performance
Low vibration and quiet operation

Robust Chamber Construction

Interior made of 10mm thick metal sheet
Exterior powder-coated GI or stainless steel finish
High-density polyurethane insulation
Corrosion-resistant construction
Heavy-duty door hinges and locking system

Intelligent Control System

7-inch / 10-inch touchscreen HMI controller
PLC-based automation system
Multi-step programmable profiles
Real-time trend graph display
USB / Ethernet / RS485 communication
Data logging and export capabilit

Safety Protection System

Over-temperature protection
Compressor overload protection
Refrigeration pressure safety switch
Sensor failure indication
Emergency stop provision
Leakage current protection
Door limit switch provision
MCB & MPCB protection for single and 3 phase devices
SPP protection
EMI filter

Optional accessories (Chargeable)

- Port caps
- PT 100 sensor
- Legri tubing-5m

Psychometric chart

Note:

1) Only standard range is part of the scope

2) If optional low rh is required then additional charges will be incurred due to addition of dehumidifier

Note:

The performance values provided are tested conditions at 25-32°c, humidity with ≤65%rh, rated voltage under empty condition.
Only DM water to be used while running humidity test.
The performance values are based on IEC 60068-3-5.
Noise level measurements are carried out in an anechoic chamber at a height of 1.2m from the floor and 1m from the front panel (ISO 1996-1:2003 a weighted sound pressure level).
Chamber to be placed in well-ventilated room ambient condition (25-35°c).
