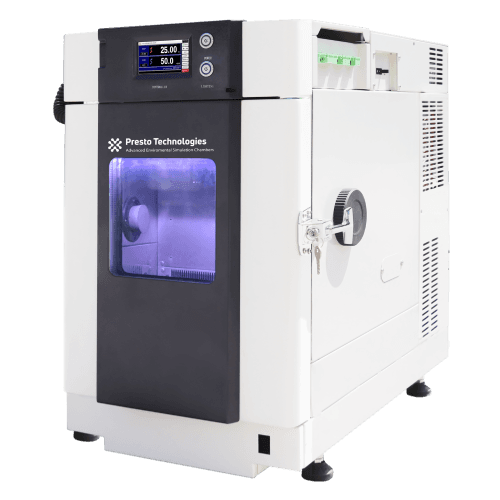

Humidity Test Chamber

• There can be seen no frosting even if the test is conducted for a long duration under Low temperature and low humidity parameters.
  The chamber consists of an Automatic control system refrigerant which improves user experience.
• Able to Set Cyclic Test Functions with user ease.
• A timer would be provided up to 999 hours for auto cut-off
• Safety features would be incorporated to ensure that the temperature does not rise beyond parameters set by the user
• Touch screen HMI Display of parameters with data logging available.
• Compact size with castor wheels to move the chamber in the laboratory
• Thick Tempered glass to ensure zero leakages and maximum thermal insulation
• Multiple samples can be placed inside the chamber with the help of Stainless steel Trays & Racks
• Inside Material of Construction: Corrosion Resistant Stainless steel (SS) Material
• Blower Fans to ensure 360 degree rotation of Temperature & Humidity
• Branded Sensors to ensure the highest level of Accuracy and Precision
• Japanese Technology Insulation material is made of polyurethane foam.
• In-built Advanced Safety Control System
• In-built LED light to ensure easy sample viewing

• Auto-tuning feature imbibed in the Microprocessor-based display for accurate results
• Run time vs temperature graphical representation.
• Data recording with temperature data reading
• Availability of USB & Pen Drive for external storage options
• Adjustable PV & SV value *Optional
• Knox system integrated for data security
• User settings can be locked by the admin panel and protected by a password
• User can control PID settings through Advanced setting
• In built Alarm system
• Interchangeable Languages- Hindi & English
• Pass/Fail Report Criteria in System Generated Report
• Viewable Fault History/ Past Reports
• Email Notification Facility for user ease
• Remote Monitoring facility for easy data management
• In-built LED light Control System
• Option available to set PV and SV value

Humidity chamber equipped with multiple safety functions like:

• Seven-point alarm function which consists of multiple alarms which provide the user with live notification of any faults in the Chamber.
  • Overshoot Temperature Alarm
  • Test Completion Alarm
  • Water Level Low indication
• Remote Monitoring Alarm System: The user shall receive all notifications regarding any fluctuation in parameters or settings to ensure immediate rectifications.
• Emergency Shutdown Mechanism: Manual/ Automatic Shutdown mechanism
• Insulation: Insulating materials and coatings to prevent electrical contact and reduce the risk of electric shock.
• SSR relay for enhanced safety function

Model		PTH-150	PTH-300	PTH-600	PTH-1000
Temperature	Temperature range	-70℃～180℃（A - 40℃～180℃; B - 70℃～180℃)
	Temperature Accuracy	±0.1°C to ±1.2°C measured at control sensor Resolution: 0.1°C
	Temperature Uniformity	< 1000 Litres: ≤1.5°C. 1000 to 2000 Litres: ≤2.0°C. > 2000 Litres: ≤2.5°C.
	Ramp rate	Heating & Cooling: 5°C/min average as per IEC 60068 3-5 for above temperature range Measured at control sensor between +155°C to -45°C in an empty chamber
	Temperature	Heating & Cooling: 3°C/min linear from +120°C to -40°C in an empty chamber
Humidity	Humidity range	10.0%RH～98.0%RH
	Humidity fluctuation	±1.0% RH
	Humidity uniformity	±2.0％RH
Material	Internal material	SUS304 stainless steel(1.2mm)
	External material	Cold-rolled plate(1.2mm), powder coating
	Heat insulation	Poly urethane foam(100mm) +glass wool(10mm)
	Fan	Centrifugal fan (Impeller Fan)
	Refrigeration compressor	Hermetic compressor
	Cooling mode	Air cooling or Water cooling
	Refrigerant	R449A, R23, R508
	Evaporator	Finned-tube exchanger
	Heater	Nickel chrome strip heater
	Humidifier	Steam Humidifier
Size	Interior size(mm) W*H*D	500*400*700	650*600*800	800*850*900	1000*1000*1000
	Outer size(mm) W*H*D	700*1670*1275	700*1880*1290	1000*1950*1400	1200*2050*1780
	Volume (L)	150L	300L	600L	1000L
	Weight (kg)	380	450	680	840
Working Temperature		+5 ~ 35℃
Power supply		220V AC 50/60Hz 31A	220V AC 50/60Hz 33A	380V AC 50/60Hz 25A	380V AC 50/60Hz 27A

The humidity chamber is used to determine the ability of various materials to withstand extreme climatic conditions. The materials are exposed to environments in different parts of the world where they will face extreme highs & lows in temperature.

The humidity conditioning chamber works on a simple mechanism of simulation. The instrument is constructed with different temperature modulations which allow it to simulate extreme environmental conditions around the specimen being tested. The humidity conditioning chamber then allows the operator to assess & evaluate the reactions of the material against such conditions. It is necessary to perform such a test in order to ensure that these products can provide longevity and durability against corrosion.

Humidity test chamber price ranges from INR 150,000 to 10,000,00 in India. The price depends on the chamber size, specifications, temperature range, and features like automation. For the best price, get a quote from Presto Enviro.

The verified humidity test chamber manufacturer offers certain specifications, features, and technical support to ensure smooth installation and meet products quality and standards. Before buying a humidity chamber, always make sure that the equipment you are getting your hands on, carries all the necessary specifications and features which streamlines the testing process and enhances the accuracy at the same time.

The humidity testing equipment is available at various manufacturers & suppliers of the lab testing instruments. However, to ensure the genuineness of the product, you must make sure that all guidelines of the designated standards are followed by the instrument being sold to you. Evaluating the specifications & features of the instrument is also important for the buyer as it satisfies the need for ergonomic testing.

A humidity test chamber is a specialized environmental testing device designed to create and maintain specific humidity and temperature levels. These chambers can simulate real-world environmental conditions that products might encounter throughout their lifecycle, allowing for rigorous testing of materials, components, and finished products.

Quality Assurance:

• Ensures products can withstand environmental stressors, thus enhancing reliability.
• Helps identify weaknesses in design or materials before products reach consumers.

Product Development:

• Facilitates the development of moisture-resistant products, essential for electronics, textiles, and pharmaceuticals.
• Enables engineers to innovate and improve formulations and designs based on testing feedback.

Regulatory Compliance:

• Assists in meeting international standards such as ISO, ASTM, and MIL standards, which often require specific humidity testing.
• Provides documented evidence of product testing, crucial for regulatory approvals.

Accelerated Testing:

• Mimics years of environmental exposure in a shorter time, helping speed up the product development cycle.
• Useful for understanding potential long-term issues that might not be evident in standard testing.

Research and Development:

• Supports academic and corporate research by enabling controlled experiments on material properties.
• Aids in the development of new materials with enhanced properties like moisture resistance.

Constant Humidity Chambers:

• Designed to maintain a steady humidity level over extended periods.
• Ideal for long-term product durability tests.

Temperature and Humidity Chambers:

• Control both temperature and humidity, allowing for complex testing scenarios.
• Useful for evaluating products in conditions that mimic real-world fluctuations.

Walk-In Humidity Chambers:

• Large chambers designed for bulk testing or for items that cannot fit in standard chambers.
• Common in automotive and aerospace industries for testing large components or assemblies.

Thermal Shock Chambers:

• Rapidly change both temperature and humidity to simulate extreme environmental conditions.
• Used to test how materials react to sudden changes, revealing vulnerabilities.

Customizable Chambers:

• Tailored to specific testing requirements, allowing for unique humidity and temperature profiles.
• Often used in specialized research or production processes.

Manufacturers:

• Essential for industries like electronics, pharmaceuticals, and food, where humidity can impact product safety and efficacy.
• Helps in developing products that meet consumer expectations and industry standards.

Research Institutions:

• Used in labs for studying the effects of humidity on various materials, fostering advancements in material science.
• Essential for PhD research or innovative product development.

Quality Control Labs:

• Conduct routine checks on incoming raw materials and outgoing products to ensure consistency and reliability.
• Helps in identifying batch variability and ensuring compliance with specifications.

Material Scientists:

• Investigate the properties of new materials and their behavior under different environmental conditions.
• Crucial for developing next-generation materials that can withstand harsher conditions.

Automotive and Aerospace Industries:

• Test components for durability and reliability in extreme environments, ensuring safety and performance.
• Essential for developing vehicles and aircraft that can operate in varied climates.

Presto Enviro is the best humidity test chamber supplier in India, known for its high-quality and dependable products for various testing solutions.
