Vibration Table Testing Equipment: Working Principle and Applications

Why do certain products fail after transportation, yet they complete all factory inspections? The answer is vibration. Starting from the time when a product is off the production floor, it is subjected to continuous motion when handling, loading, and being transported. These movements can appear innocent, but with time they cause stress to make joints weaker, fasteners loosier and internal components damaged. At this point, vibration table testing equipment comes in. It aids manufacturers in developing the reaction of the products to repetitive motion before the product reaches the user.

What Is Vibration Table Testing Equipment?

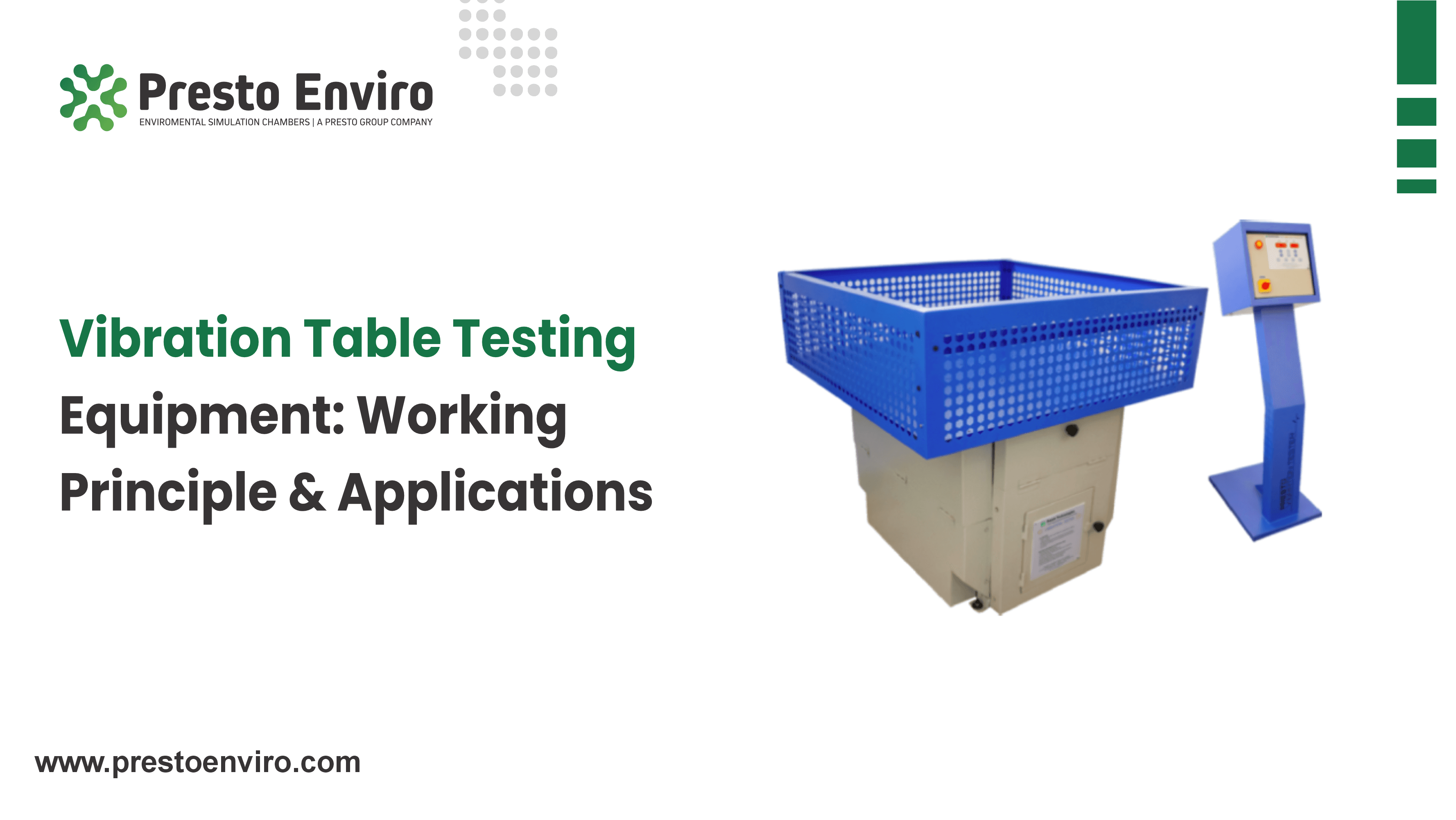

Vibration table testing equipment refers to a machine that is used to replicate the actual vibrations in a controlled environment. The part or the product is positioned on a flat platform, referred to as the table, which pushes in a certain direction.

This movement copies the vibration product experience during transport or operation.
The goal is simple. Observe how the product behaves under repeated motion. Any weakness shows up early, long before mass dispatch. This makes vibration testing a valuable step during product development and quality checks.

Working Principle of a Vibration Table

The work principle  is organised movement. Depending on the model and the test required, the vibration table causes motion in either vertical or horizontal motion.

Vibration is generated by an electric motor or a mechanical drive that is rotating an eccentric block. When this mass is rotating, it makes the table move in a repetitive manner. The velocity and rate of this movement are adjustable.

Test duration also varies. There are those tests that take a matter of a few minutes and others that take hours. At this period, the product is held onto the table. Any loosening, cracking, or functional problem is seen.

This is due to the simplicity of this concept and the reason that vibration tables are reliable and easy to use in various industries.

Why Vibration Testing Matters?

The stress on products is not limited to the use of the products but also includes handling and shipment. Materials become weak when they are shaken repeatedly.

Vibration testing can be used to identify such problems at an early stage. It points out weak joints, ill supports in packaging facilities, and design failures. These issues can go undetected without this testing, and are usually detected once complaints are received by the customers.

Manufacturers can save the cost associated with returns, replacements, and damaged brands by pre-testing.

Types of Vibration Table Tests

Different vibration patterns serve different purposes.

• Fixed frequency testing checks product behaviour at a constant vibration speed.

• Variable frequency testing changes the vibration speed during the test. This helps identify resonance points where damage may increase.

• Endurance vibration testing runs for extended durations. It shows how products hold up under long-term stress.

• Packaging vibration testing focuses on cartons and cushioning materials. It checks whether the packaging can protect the product during transit.

Applications Across Industries

Vibration table testing equipment supports many sectors.

1. Electronics industry
Electronic products contain delicate parts and soldered joints. Vibration testing checks internal stability during transport and daily use.

2. Automotive components
Automotive parts face constant movement once installed. Vibration testing helps evaluate fasteners, housings, and assemblies before vehicle integration.

3. Packaging units

It makes a significant contribution to product safety. Vibration tables are used to test cartons, pallets, and protection materials.

4. Defense and Aerospace

This is a sector that is supposed to be highly reliable. Vibration testing helps to test the components in simulated flight conditions or in simulated handling conditions.

5. Consumer goods
Household appliances and tools are tested to check durability during shipping and storage.

6. Industrial equipment
Large machines and components also face vibration during operation. Testing supports design improvement and long-term performance checks.

Vibration Table Testing Equipment at Presto Enviro

Presto Enviro specialises in the provision of vibration testing equipment for industrial tests. These machines help to create favourable vibration and steady working conditions.

Such systems are important to industries in order to simulate transport conditions. It is still about repetition and simplicity when performing routine tests.

Advantages of Using Vibration Table Testing Equipment

Early detection of defects

The problems are identified when testing products are being done.

Reduced product returns
Early determination of weaknesses reduces post delivery failure rates.

Better packaging decisions
Packaging strength can be evaluated and improved.

Improved customer confidence
Products that survive vibration testing perform better in real use.

Choosing the Right Vibration Table

•  Selecting the right equipment depends on product size, weight, and test requirements.
•  Table size should match product dimensions.
• The Load capacity must support the test sample safely.
• Control range matters for adjusting vibration speed and intensity.
• Ease of operation also plays a role, especially in facilities with frequent testing.

Maintenance and Handling

• Regular checks keep vibration tables working smoothly. Fasteners, motors, and control systems should be inspected periodically.
• Proper placement on a stable surface reduces unwanted noise and movement.
• Training operators helps maintain consistent test results.

Conclusion

The vibration table testing apparatus has a low but strong role in the quality control of a product. It assists manufacturers in knowing how the products respond to repeated motion, prior to exposure to the real world. Vibration testing has helped the electronics and packaging industry, the automotive industry, and the aerospace industry in terms of durability, safety, and customer satisfaction. Having the right equipment in place, the industries are convinced that their products will be able to withstand the trip between the factory and the user.

FAQs

How can I know the price of this instrument?
You have to connect with our team at response@prestoenviro.com or call +91 180041231134.

Are only fragile products subjected to vibration testing?
No. Even powerful products may come up with problems when they are subjected to heavy vibration.

What is the duration of an average vibration test?
The duration of the test is based on the standards and type of product. It may last between several hours and minutes.

Can packaging be tested without the product?
Yes. Empty packaging can be tested to check cushioning performance.

Does vibration testing replace drop testing?
No. Both tests serve different purposes and are often used together.

Who uses vibration table testing equipment the most?
Manufacturers, quality labs, and research facilities across multiple industries rely on it regularly.
