Climatic Chamber

Climatic chamber is an enclosed space that simulates and replicates controlled temperature and humidity conditions through precise climate control. It is constructed with a rigid, corrosion-resistant housing and a leak-proof interior designed to withstand extreme temperature and humidity exposure.

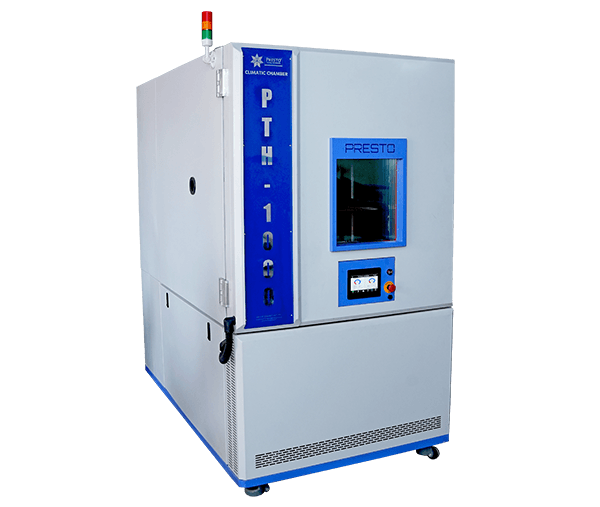

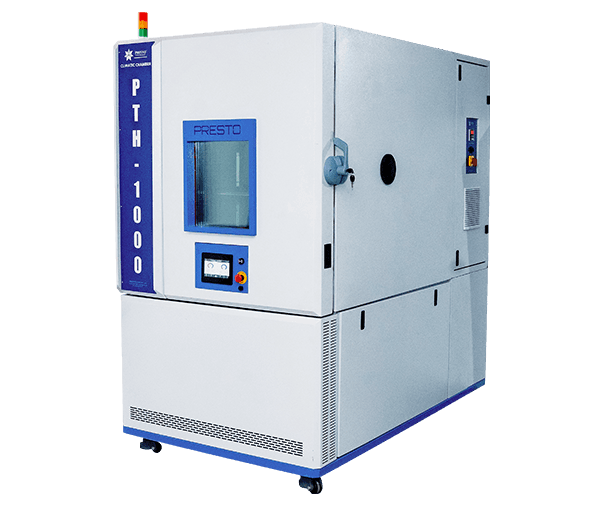

The Presto Enviro climatic test chamber features advanced systems with PLC control to accurately simulate temperature and humidity, along with a built-in air circulation system. The climatic chamber controls temperature range and humidity levels, has a strong inspection window, and has adjustable shelves to securely accommodate test samples.

A climatic chamber test can be performed according to international standards such as IEC, JIS, ASTM, ISO, and DIN, depending on the specific test method being followed.

Presto Enviro is a leading climatic chamber manufacturer and supplier in India. For the best climatic chamber price, contact us for a quote or call now!

Model :PTH Series

A climatic test chamber is a laboratory instrument designed to maintain specific temperature and humidity levels for testing products under simulated real-world conditions. The system creates stable or cyclic temperature-humidity profiles, enabling engineers to observe how materials, components, and finished products respond to controlled environmental conditions over extended periods.

Climatic testing chambers are widely used in the automotive, electronics, aerospace, pharmaceutical, and consumer goods industries, where product performance, reliability, and material stability under varying climatic conditions are critical.

By identifying potential problems such as heat stress, moisture damage, material degradation, or electronic failures early in the design process, a climatic chamber test can significantly reduce the risk of product failures, warranty claims, and expensive recalls.

These chambers help improve overall product quality through repeated and accelerated testing, ensuring long-term durability and performance across wide ranges of temperature and humidity. A climatic test chamber can also support product development, validation, and quality assurance programs.

Presto Enviro is a trusted climatic chamber manufacturer in India, offering chambers designed for compliance with global testing standards such as IEC, JIS, ASTM, ISO, and DIN, which are often required for product certification and global market acceptance.

With a climatic chamber machine, years of natural weathering can be accelerated into days or weeks, saving valuable time and reducing testing costs. Additionally, these systems provide consistent and accurate results that are crucial for research, product development, and quality assurance.



Technical Specifications

  • Temperature range from -70°C to +180°C with high accuracy (±0.5°C) for extreme thermal testing
  • Humidity control range 20% to 98% RH (±2.5% RH) for precise simulation
  • Advanced PLC/touchscreen control system with programmable cycles and dwell times
  • Uniform air circulation via centrifugal baffles for consistent temperature & humidity distribution
  • High-efficiency refrigeration system with cascade cooling and eco-friendly refrigerants
  • Corrosion-resistant SUS 304 stainless steel interior and exterior construction
  • Integrated dehumidification and humidification systems with automatic water refill
  • Compliance with international standards IEC 60068, ISO 16750, MIL-STD-810, ASTM, and JIS
  • Safety features include over-temperature protection, low-water alarm, door interlocks, and emergency stop
  • High-precision sensors for real-time monitoring of temperature, humidity, and chamber conditions



Model

PTH-150

PTH-300

PTH-600

PTH-1000





  Temperature

Temperature range

-70℃~180℃(A - 40℃~180℃; B - 70℃~180℃)

Temperature Accuracy

±0.1°C to ±1.2°C measured at control sensor Resolution: 0.1°C

  Temperature Uniformity

< 1000 Litres: ≤1.5°C. 1000 to 2000 Litres: ≤2.0°C. > 2000 Litres: ≤2.5°C.

Ramp rate

Heating & Cooling: 5°C/min average as per IEC 60068 3-5 for above temperature range Measured at control sensor between +155°C to -45°C in an empty chamber

Temperature

Heating & Cooling: 3°C/min linear from +120°C to -40°C in an empty chamber



  Humidity

Humidity range

10.0%RH~98.0%RH

Humidity fluctuation

±1.0% RH

Humidity uniformity

±2.0%RH

  Material

Internal material

SUS304 stainless steel(1.2mm)

External material

Cold-rolled plate(1.2mm), powder coating

Heat insulation

Poly urethane foam(100mm) +glass wool(10mm)

Fan

Centrifugal fan (Impeller Fan)

Refrigeration compressor

Hermetic compressor

Cooling mode

Air cooling or Water cooling

Refrigerant

R449A, R23, R508

Evaporator

Finned-tube exchanger

Heater

Nickel chrome strip heater

Humidifier

Steam Humidifier

  Size

Interior size(mm) W*H*D

500*400*700

650*600*800

800*850*900

1000*1000*1000





Outer size(mm) W*H*D

700*1670*1275

700*1880*1290

1000*1950*1400

1200*2050*1780





Volume (L)

150L

300L

600L

1000L





Weight (kg)

380

450

680

840





Working Temperature

+5 ~ 35℃

Power supply

220V AC 50/60Hz 31A

220V AC 50/60Hz 33A

380V AC 50/60Hz 25A

380V AC 50/60Hz 27A







FAQs

Climatic test chamber is used for testing products under controlled temperature and humidity conditions. It helps evaluate product performance, reliability, durability, and material stability under different climatic conditions.

A climatic chamber works by precisely controlling temperature and humidity inside an enclosed testing space. Its PLC-based control system maintains stable or cyclic environmental conditions for accurate and repeatable testing.

Climatic test chambers are used in automotive, electronics, aerospace, pharmaceutical, consumer goods, and other industries. They help evaluate product performance, reliability, and durability under controlled climatic conditions.



A climatic test chamber typically provides temperatures from −70°C to +150°C and humidity levels from 10% to 98% RH, depending on the model. Custom ranges can also be configured for specific testing requirements.

The climatic test chamber price ranges from INR 1,50,000 to 10,00,000 in India. The price varies depending on size, temperature range, features, and customization. Contact Presto Enviro for a customized quotation based on your testing requirements.



Presto Enviro is the best climatic chamber manufacturer in India, offering reliable and technically advanced environmental testing equipment. Its chambers are designed for accurate performance and compliance with international testing standards.
