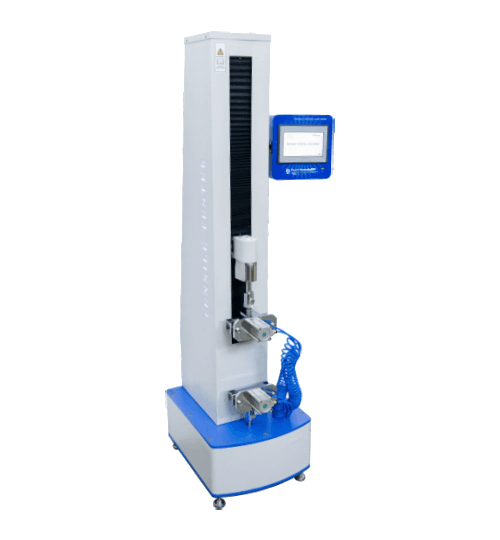

Tensile Tester Servo

Evaluation of the ductility, tensile strength, yield strength, and other mechanical properties of various paper & packaging materials, rubber, polymers, automotive, textiles, etc. is extremely vital. The tensile tester is just the right product for performing all the strength tests. The machinery is a lab testing instrument that determines the mechanical properties of the specimen including elongation, peel strength, ductility, and tensile strength. The machinery is a one-stop solution for all the tests due to its ability to test various specimens from different industries for versatile abilities.

The machine is manufactured by

ASTM D412ASTM D429-73ASTM D624
ASTM D76ATM D638-01IS 13360- 5-7
IS 3400

The instrument is manufactured with top-notch quality material, ensuring durability and thus making the instrument a cost-efcient investment.

Technical Specifications

  • Cross-head travel length: 700mm grip to grip ( with standard vice-type grip)
  • Highly accurate micro-controller based system controls
  • Immediate analysis of results after the test with complete accuracy & Precision
  • Program prole for selecting test parameters and performing the test.
  • Easy Data Management. Users can create product identication, test speed, test method, test mode, etc.
  • USB option available for storing test data (Pen drive not a part of offer)
  • Data output in PDF and CSV le format.
  • Can be programmed home return with time dened.
  • Calculate the Direct Tensile Strength with High-precision Load cell interface
  • Calculate the Test results, Min. /Max. /Avg.
  • Single-column rugged structure
  • Safety limit switches for over-travel safety
Power220V, Single phase, 50 Hz
DisplayTouch Screen (7 Inch)
Accuracy± 2% at full range (with master load)
Speed 1 mm/min to 1000 mm/min (Changeable through speed controller)
Grip to Grip Separation Min 60 mm and Max. 700 mm (applicable only with vice-type standard grip)
Load CapacityUp to 500 Kgf
Safety Yes (Limit Switches)
Grippers (optional)Vice Type (Standard grippers)
  • Safety Yes: (Limit Switches)
  • Grippers (optional added based on requirement) Vice Type (Standard grippers) Optional: Pneumatic and Special Grips
  • Material: Mild Steel
  • After test Home return: Yes
  • Finish: Powder-coated Havel Gray & Blue combination finish and bright chrome/zinc plating for a corrosion-resistant finish
  • Dimensions: 400 x 500 x 1566 mm
